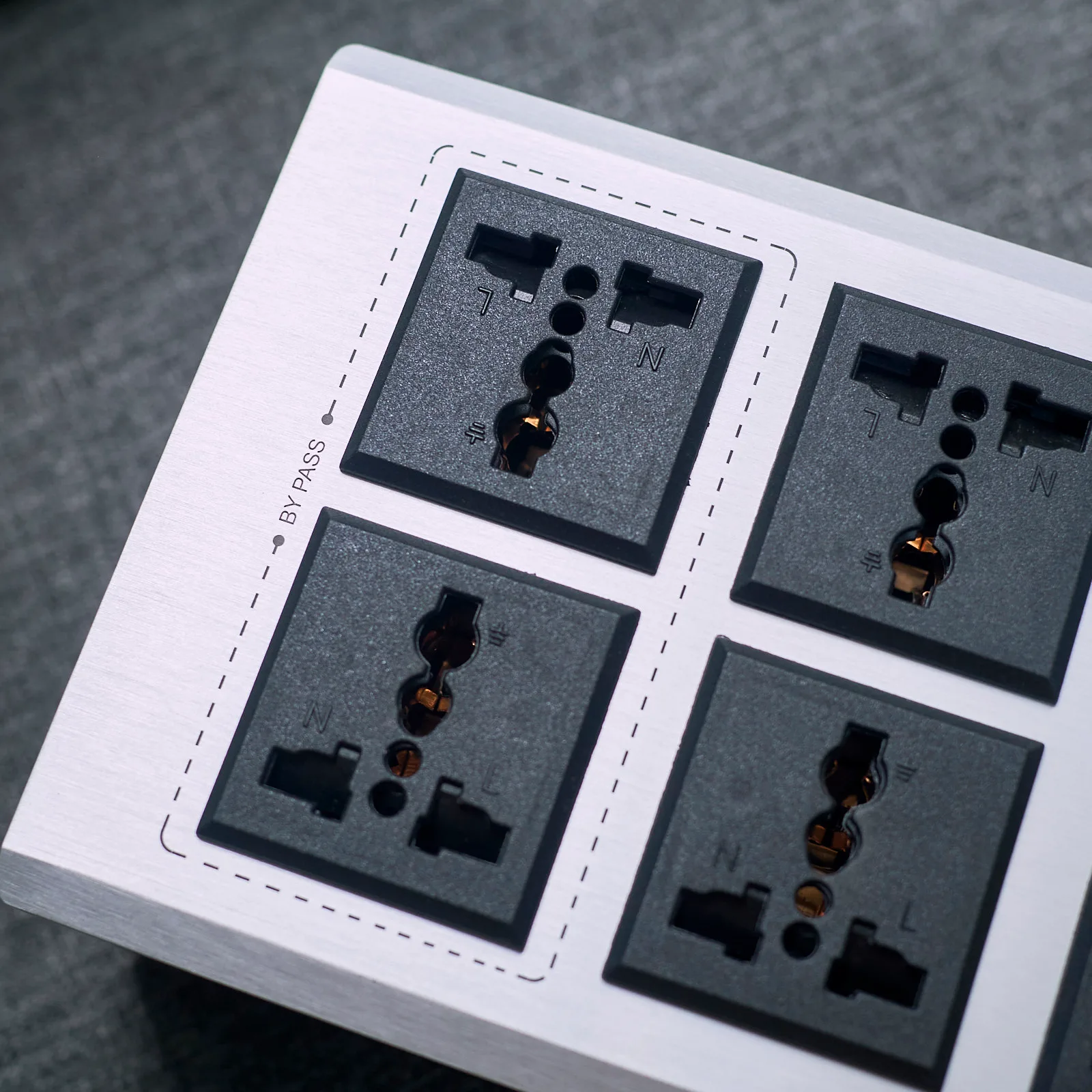

Muzishare P-10 is a super effective power strip conditioner that works on removing noise from currents and minimise various interferences that may lead to your connected equipment. All sockets, except a pair of bypass sockets at the end, come with surge protection, spikes overloads and high superiority of filtering.

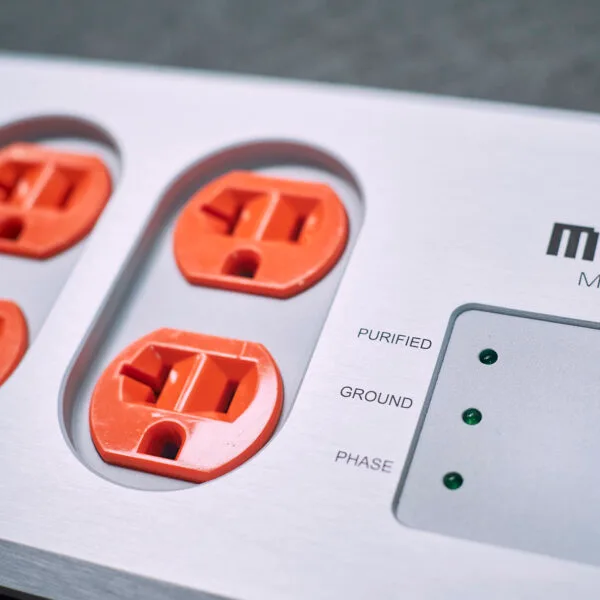

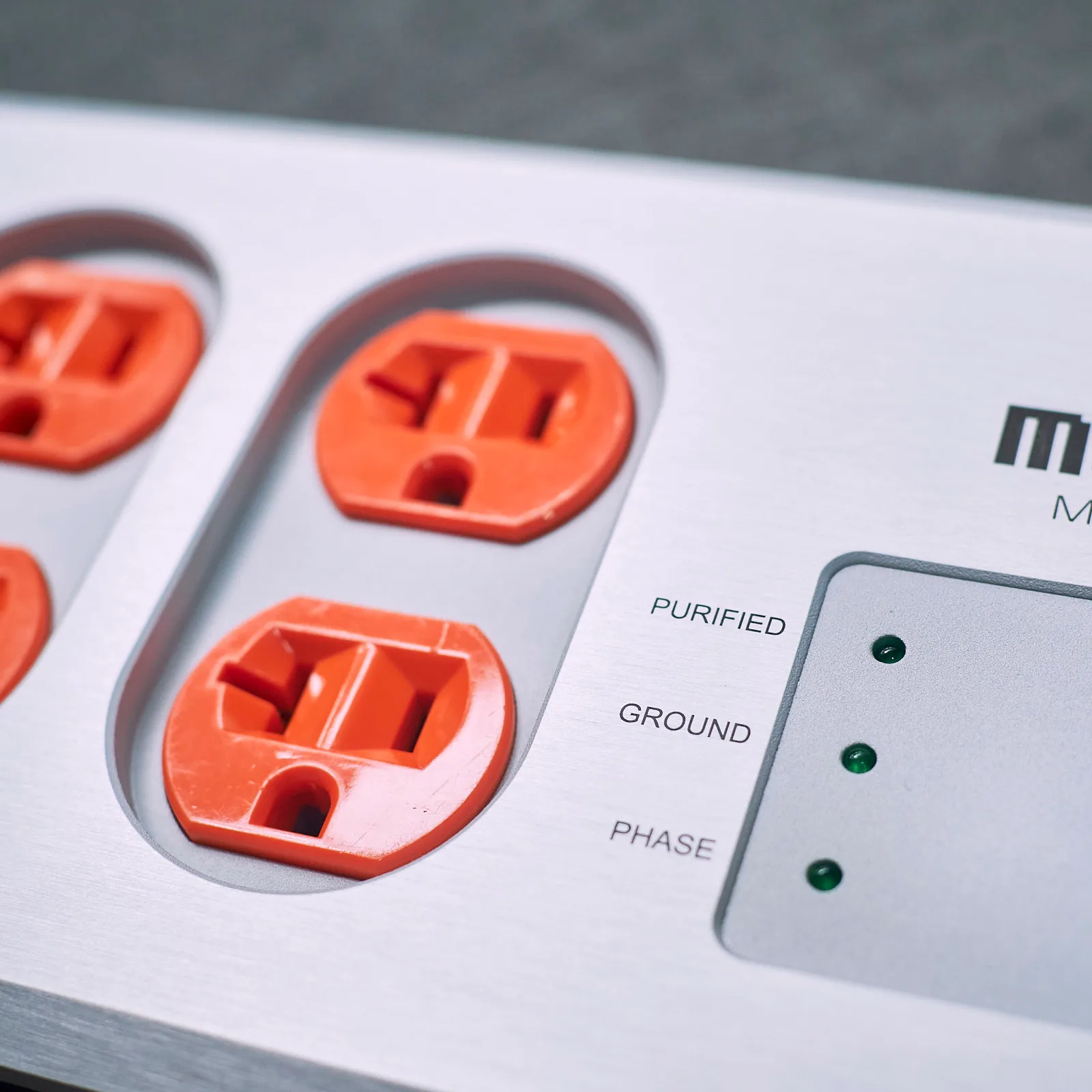

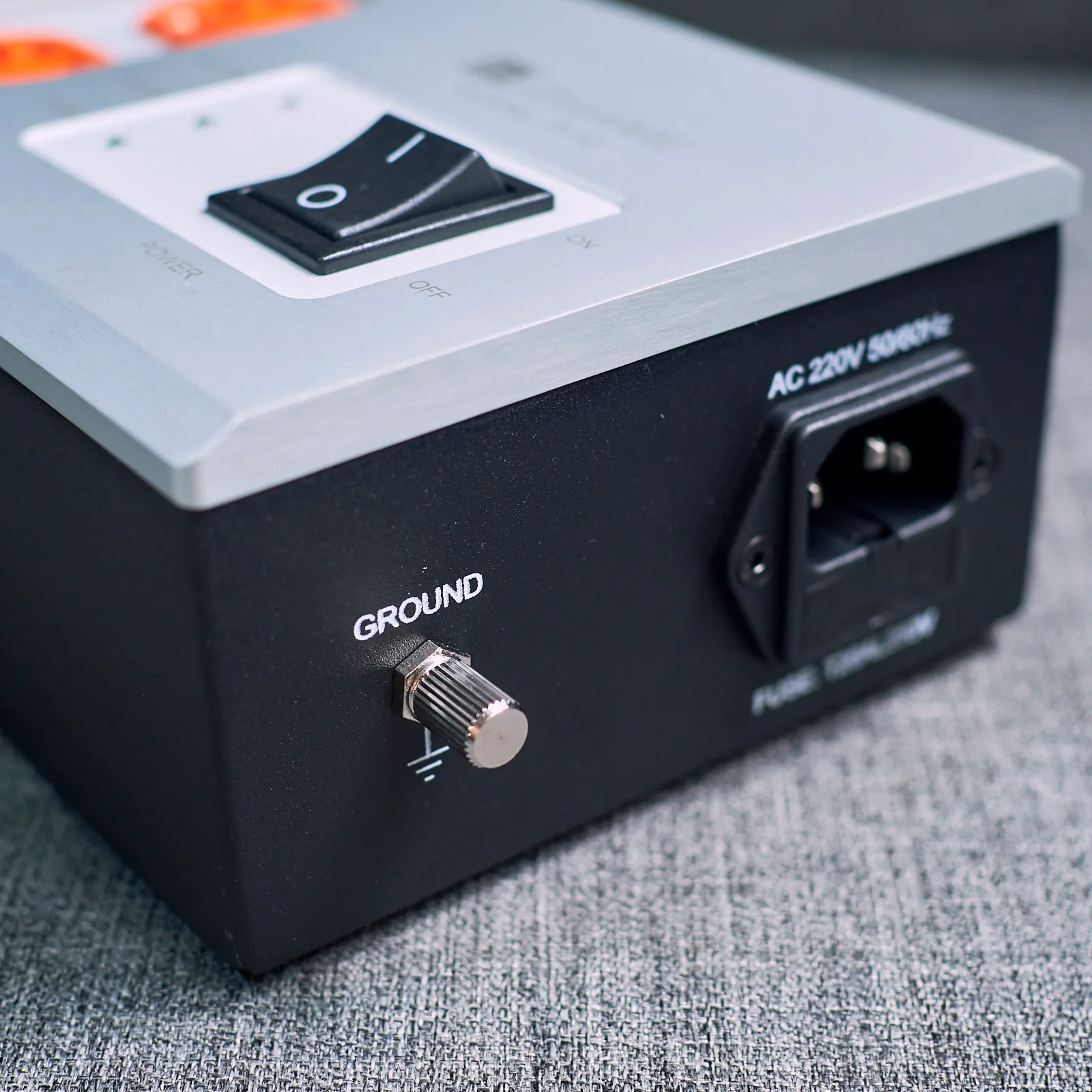

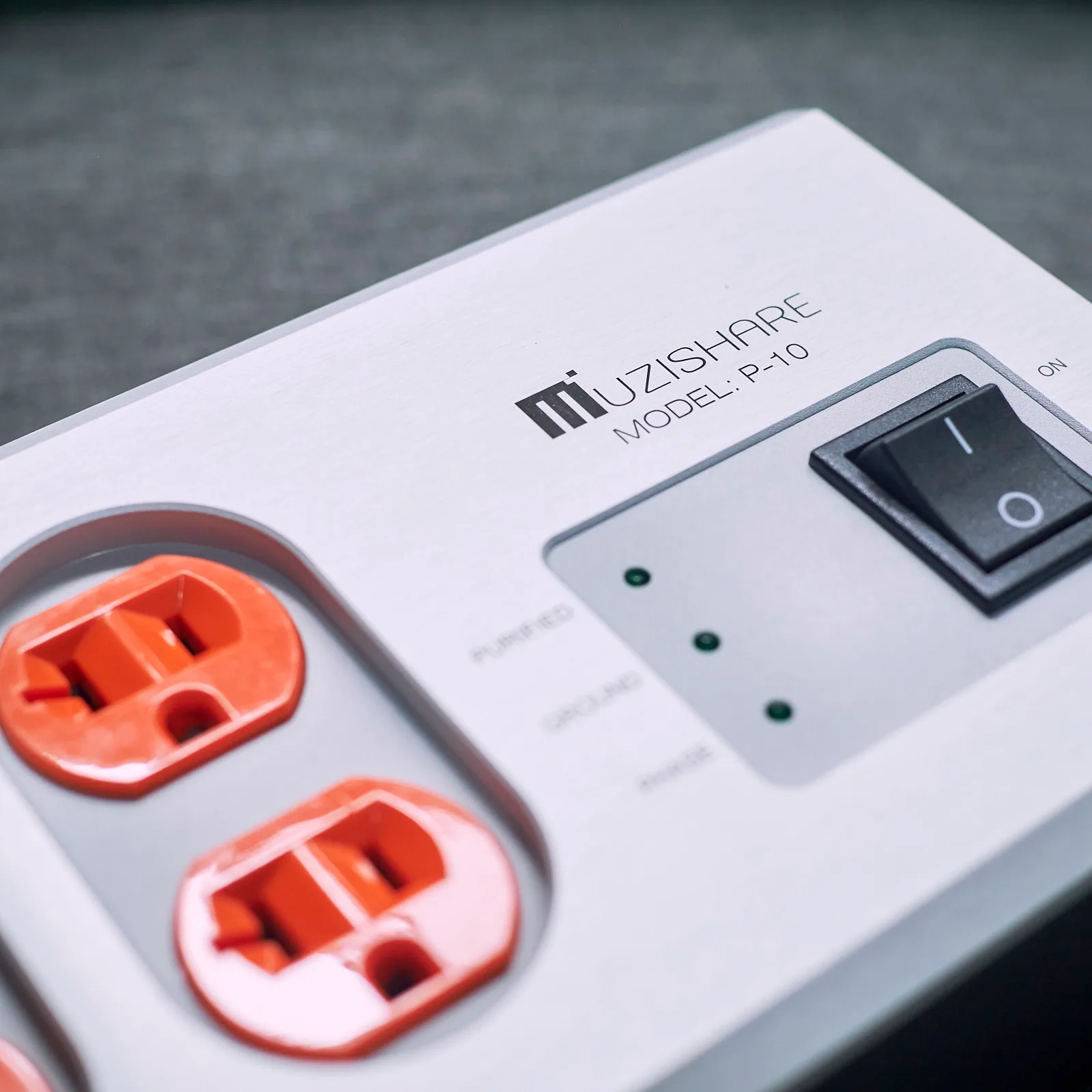

The conditioner is an easy-to-use unit right away without complicated installation where there are accompanying indicator LEDs in signifying the Phase (correct polarity of cables), Ground (grounding connected) and Purified functions are working properly. There is also a dedicated grounding post which is useful for connecting devices like turntable or phono stage to provide another possible option of keeping the noise or ground level down.
P-10 uses Lead Zirconate Titanate (PZT) as piezoelectric ceramics in the current filtering components. They work effectively in minimising more than 95% of noise in AC current, thereby improving the quality and clarity of the both sounds and visuals.
Each set of output socket types has a dedicated filter circuit which keeps to the signal integrity and purity for every of the equipment connected.
The sockets are also wired with the star wiring method which isolates each power cable connected to P-10 from the rest, thereby preventing any undesirable effect of cross talk between the cables and sockets as much as possible. This also allows P-10 the power capacity to be able to drive power-hungry amplifiers, receivers or huge subwoofers.
High quality DCT duplex sockets are used in the unit ensuring a high degree of pure and clean transmission in power and current.
As with all Muzishare products, the external chassis are finely crafted from CNC aluminum which not only adds to the rigidity and aesthetic, but also helps in rejecting external RFI and EMI.
With strong performance and solid build quality, this Muzishare P-10 is an excellent power accessories which will belong well in the Hifi audio equipment setup for its high price-performance ratio.
- Rated current: 20 A
- Operating voltage: 190-250V
- Response time: 1 nanosec
- Maximum surge current: 13000 A
- Maximum peak energy: 380 J/single mode, the 1140 J/Total
- Noise attenuation:
- > 10dB @ 10KHz
- > 46dB @ 100KHz
- > 100dB @ 1-10MHz

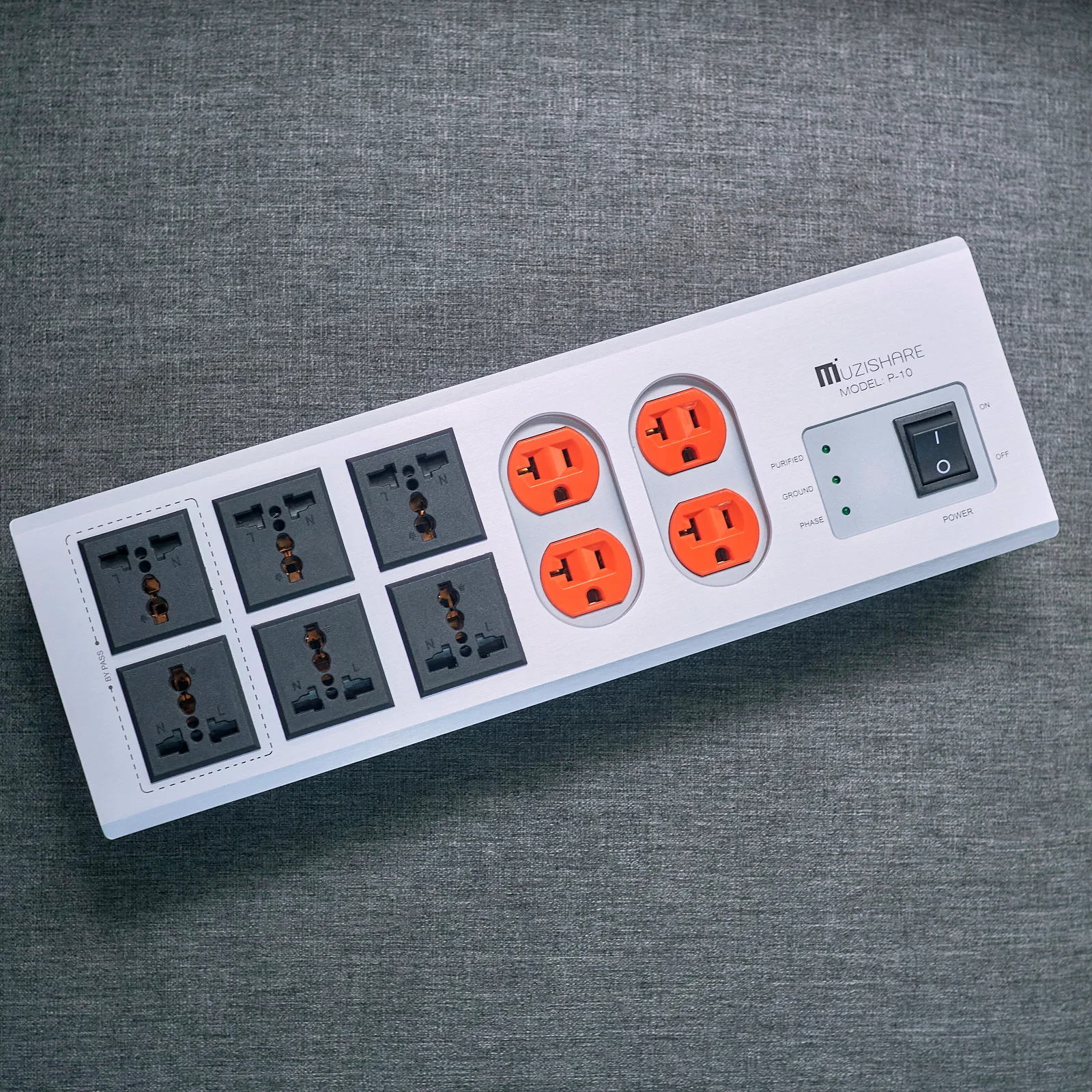

- 6x black universal socket and 4x yellow US standard socket
- Dimension: 372×120×65mm
- Net Weight: 3.5kg
